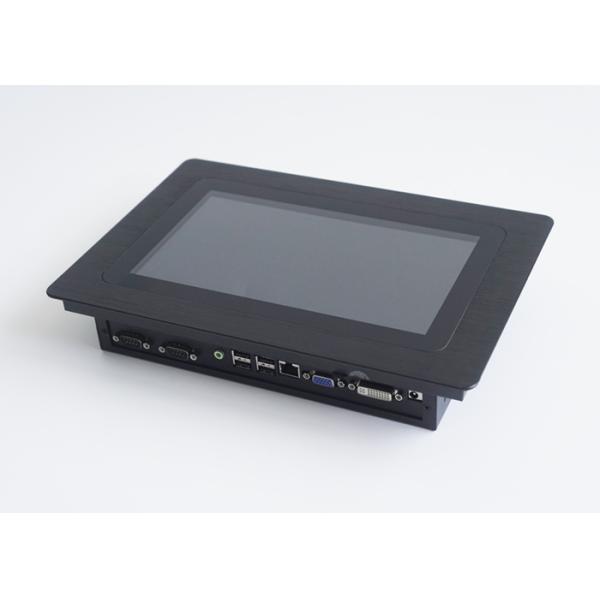

    10.1'' Industrial Touch Panel PC Dual Core Industrial Touch Panel With ISDN PCI Slot

    Ask Lasest Price
    Brand Name : Shinho
    Model Number : SC101
    Certification : CE , FCC , RoHS
    Price : Negotiable
    Payment Terms : T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
    Supply Ability :
    Delivery Time :
    • Product Details
    • Company Profile

    10.1'' Industrial Touch Panel PC Dual Core Industrial Touch Panel With ISDN PCI Slot

    10.1 Industrial Panel PC Atom D2550 Processor Dual Core with ISDN PCI Slot



    Features

    1) 10.1 inch industrial LCD Panel


    2) Intel Atom D2550, Dual core, 1.86GHz

    3) RAM 4GB, Hard drive capacity 32GB


    4) Brightness 300nits

    5) Interface: 4x USB, 2x COM RS232, 1x VGA, 1x DVI, 1x RJ45, 1x Audio OUT, 1x POWER DC, 1x ISDN PCI slot


    6) Aluminum Alloy enclosure


    Applications


    Industrial automation


    monitoring center


    Intelligent Lab Automation


    process control systems


    Data Acquisition



    Packing Details


    Universal Power adapter


    Embedded screws


    Warranty card


    Specification


    Model:SC101
    PC
    CPUIntel Atom D2550, Dual core, 1.86GHz
    ChipsetIntel ValleyView SSA-CUnit
    Memory2G DDR3 (4G, 8G optional)
    Hard Drive Capacity32G SSD
    Hard Drive OptionalSSD: 64G, 128GB, 256GB
    HDD: 500GB, 1TB
    GraphicsCPU Integrated graphics HD Graphics and support 1080p HD photo quality
    AudioRealtek ALC662, High Definition Audio (HD), Line in, Line out
    Network1×Realtek RTL 8111E Gigabit Ethernet controller
    Wireless NetworkWIFI
    I/O Interface2x USB 2.0, 2×USB 3.0, 2 x COM RS232
    1x VGA/RJ45/Audio OUT/POWER DC
    1x PCI slot
    Operation SystemSupport Windows 7/8/10, Windows XP.
    LCD panel
    Panel size10.1"
    Resolution1366*768
    Aspect ratio16:9
    Support Color16.7M colors
    Brightness (cd/m²)400+
    Response time5ms
    Contrast ratio1000:1
    View angle80°/80°/80°/80° (R/L/U/D)
    Power Supply
    External Power SupplyAC 100 - 240V
    Working voltageDC 12V
    Power consumption≤45W
    Enclosure
    MaterialAluminum Alloy
    ColorSilver, Black, white, color can be customized
    VESA mounting75×75mm/100×100mm
    IP gradefront panel IP65 waterproof
    Operating Environment
    Temperature Rangeoperating: -10 to 60°C, storage: -20 to 80°C
    Relative humidity5%~95% @ 40° C, non-condensing
    Vibration5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    Packing Details
    Net weight1.8kg
    Gross weight3.1kg
    Product Dimension29.4×19.4×5.85cm
    Packing size40×34×15cm
    AccessoriesPower adapter, embedded screws, user manual, warranty card
    Other
    Mounting (options)embedded mounting screws
    wall mounting brackets (optional)
    desk stand holder (optional)
    Warranty1 year warranty
