Open frame LCD monitor 1000 nits Industrial RS232 touch screen 10
point sunlight readable
Features
1. Open frame design.
Front bezel aluminum alloy brushed metal craft, seamless design,
front IP65 waterproof and dustproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. EETI waterproof solution, touch function can work well with drop
water on the screen.
4.1000 nits, sunlight readable, with light sensor for auto dimming.
5. Anti glare.
6. High performance mainboard, 7x24 continuous operation.
7. Wide temperature range: operating: -20 to 70°C, storage: -30 to
80°C.
8. Support wall mounting, embedded mounting, desk stand mounting
etc.
Specification
| Model:SL215 |
| LCD panel |
| Panel size | 21.5" |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000nits, sunlight readable |
| Brightness control | Light sensor for auto dimming (optional) |
| Contrast ratio | 1000:1 |
| View angle | 89°/89°/89°/89° (R/L/U/D) |
| Touch panel |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Treatment | Anti glare |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | RS232 ( USB optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (4 or 5 wires restive touch, IR touch optional) |
| Signal Ports |
| VGA | 1×VGA |
| DVI | 1×DVI |
| HDMI | 1×HDMI |
| Audio in/out | optional |
| OSD |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language
select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian,
Japanese, Chinese etc. |
| Support OS | Windows XP, Windows /7/8/10, Linux, Mac OS X, Android ect. |
| Power Supply |
| External Power Supply | AC 100 - 240V , 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤35W |
| Enclosure |
| Material | aluminium alloy bezel+High strength cold rolled steel back case |
| Color | Black, white, Silver, color can be customized |
| VESA mounting | 75x75mm, 100×100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment |
| Temperature Range | operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | operating: 10% to 80% , storage :5% to 90% |
| Packing Details |
| Net weight | 9kg |
| Gross weight | 11kg |
| Product Dimension | 57.7×32.6×4.9cm |
| Packing size | 65×47×18cm |

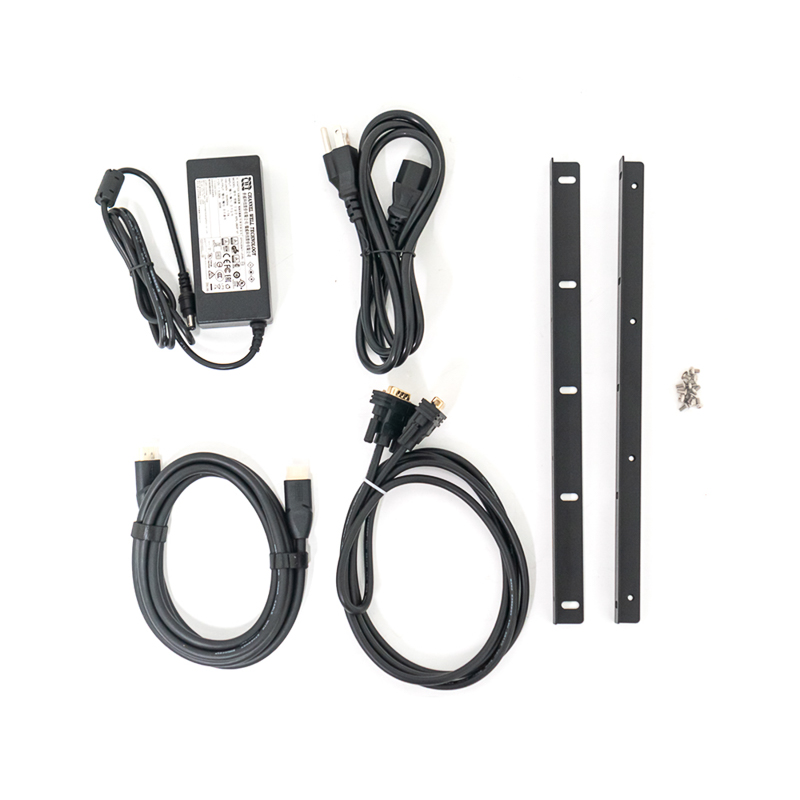

| Accessories | Power adapter, power cord, USB touch cable, HDMI/ VGA cable,
open frame mounting kits |
| Other |
| Mounting | open frame |
| wall mounting brackets (optional) |
| desk stand holder (optional) |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
FAQ
Q: What is your main size for your PCAP capacitive touch screen
monitor?
A: 7” 10.1” 10.4” 12.1” 13.3” 14” 15” 15.6” 17” 17.3” 18.5” 19”
19”W 21.5” 22” 23” 23.8” 24” 27” 32” 43” 55” 65”.
Q: Is it waterproof? Vandal proof.
A: Yes, the front panel is waterproof. It is anti-vandal.
Q: Is it anti-glare?
A: Yes.
Q: Whether your PCAP capacitive touch screen monitor support OEM?
A: Yes, our PCAP touch monitor support customization with size,
brightness, function, appearance, resolution, etc.
Q: What is your capacitive touch monitor application?
A: Desktop touchmonitors, Open Frame Touchmonitors, Interactive
Digital Signage, Point-of-information kiosks,
Point-of-sale (POS) terminals, Gaming and lottery terminals,
Self-service/Self-automation
Public environments: Hotel lobbies, Office buildings, Auto
dealerships, Bank branches, Gaming casinos, Healthcare waiting
rooms, Retail stores and train stations, Industrial Control,
Education, Artificial Intelligence, etc.
