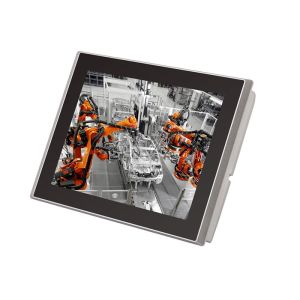

| Model:SC121 |
| PC |
| CPU | Intel® Celeron J1900, quad core, 2.0GHz, fanless |
| CPU optional | Intel® Core, I5-4200U, dual core, 1.6GHz, fanless |
| CPU optional | Intel® Core, I7-4500U, dual core, 1.8GHz, fanless |
| CPU optional | Intel® Core, I5-6360U, dual core, 2.0GHz, fanless |
| CPU optional | Intel® Core, I5-7200U, dual core, 2.5GHz, fanless |
| CPU optional | Intel® Core, I7-7500U, dual core, 2.7GHz, fanless |
| CPU optional | Intel® Core, I5-8250U, quad core, 1.6GHz, fanless |
| CPU optional | Intel® Core, I7-8550U, quad core, 1.8GHz, fanless |
| Memory | 4G DDR3 |
| Hard Drive Capacity | 64G SSD |
| Hard Drive Optional | SSD: 128GB, 256GB, 512G SSD |
| HDD: 500GB, 1TB |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo
quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1×Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI |
| I/O Interface | 3xUSB 2.0, 1xUSB 3.0, 1x built in USB SoftDog, |
| 2x DB-9 COM1& COM2, RS232/422/485 |
| 2x3 wire COM3 & COM4 RS232/485 Phoenix terminal, 2x3 wire COM5 &
COM6 RS232 |
| 1xPhoenix terminal remote switch interface |
| 1x AT/ATX switch |
| 1x HDMI/Audio Line-out/ Power Button |
| 1x 14 bit GPIO optional |
| 2x 8Ω 1W Amplifier out optional |
| Expansion slot | MINI-PCIE x 1, on board SIM card slot, support 3G/4G module |
| MINI-PCIE x 1, support WIFI/ Bluetooth |
| Watchdog timer | 1~255 second Programmable Setting |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
| LCD panel |
| Panel size | 12" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400 |
| Response time | 5ms |
| Contrast ratio | 800:1 |
| View angle | 85°/85°/85°/85° (R/L/U/D) |
| Touch panel |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working life | >50 million times |
| Touch options | (5 wire resistive touch optional) |
| Power Supply |
| External Power Supply | AC 100-240V |
| Working voltage | 9V-36V wide voltage |
| Power consumption | ≤24W |
| Enclosure |
| Material | Aluminum Alloy |
| Color | Grey |
| VESA mounting | 75x75mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment |
| Temperature Range | Operating: -20 to 60°C, storage: -30 to 70°C |
| Relative humidity | 10%~90% @ 30° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details |
| Net weight | 4kg |
| Gross weight | 5kg |
| Product Dimension | 31.88x24.5x5.65cm |
| Packing size | 43x38x18cm |
| Accessories | Power adapter, power cord, embedded screws, 2.5-inch hard drive
holder |
| Other |
| Mounting (options) | Embedded mounting screws |
| Wall mounting brackets (optional) |
| Desk stand holder (optional) |
| Warranty | 2 year warranty |
| Certificate | CE, FCC, RoHS |
