    5 Wire Resistive Touch Screen Monitor Aluminium Alloy Material With Light Sensor

    Ask Lasest Price
    Brand Name : Shinho
    Model Number : SL12
    Certification : CE, FCC, RoHS
    Price : Negotiation
    Payment Terms : T/T,Paypal,L/C, D/A, D/P, Western Union, MoneyGram,
    Supply Ability :
    Delivery Time :
    • Product Details
    • Company Profile

    5 Wire Resistive Touch Screen Monitor Aluminium Alloy Material With Light Sensor

    12 Inch 1024*768 High Resolution Resistive Touch Monitor With Light Sensor


    Features


    1. Front bezel aluminum alloy brushed metal craft,seamless design, front IP65 waterproof and dustproof .


    2. 12'' 4:3 Industrial LCD panel, wide viewing angle, high nits, true color.


    3. Adopt 5 wire resistive touch panel , stable, durable, anti-interference.


    4. High performance mainboard, 7x24 continuous operation.


    5. Support wall mounting,embedded mounting,desk stand mouting etc.


    6.1000 nits,sunlight readable,ideal for embedded in outdoor kiosk.


    7.with light sensor, auto adjust brightness.


    Applications


    Outdoor kiosk


    self-service ticket machine


    Robot


    process control systems


    Food production workshop


    sports lotteries


    SCADA HMI


    Semi outdoor application


    Customization Service


    1. Capacitive touch.


    2. 1280*800 widescreen. 16:10 aspect ratio


    3. Anti-glare.


    4. 24V power with Phoenix terminal.


    5. Full IP65 waterproof monitor.


    6.Show your logo when turn on the monitor or print the logo on the bezel of monitor.


    7.COM RS232 for touch.


    8. AV,BNC.


    9. With 3mm-6mm tempered glass


    10. Other size can be customized.


    Specification


    Model:SL12
    LCD panel
    Panel size12"
    Resolution1024*768
    Aspect ratio4:3
    Support Color16.7M colors
    Brightness (cd/m²)1000nits,sunlight readable
    Contrast ratio1000:1
    View angle80°/80°/80°/80° (R/L/U/D)
    Touch panel
    Touchscreen Type5 wires restive touch
    Surface Hardness3H
    Luminousness90%
    Touch InterfaceUSB (RS232 optional)
    Touch response time2ms
    Working Life>35 million times
    Touch options(Project Capacitive Touch , IR touch optional)
    Signal Ports
    VGA1×VGA
    DVI1×DVI
    HDMI1×HDMI
    Audio in/outoptional
    OSD
    OSD controlBrightness, contrast ratio, auto adjustment, H/V position, language select etc.
    Support languagesEnglish, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
    Support OSWindows XP , Windows /7/8/10 , Linux, Mac OS X, Android ect.
    Power Supply
    External Power SupplyAC 100 - 240V , 50-60Hz
    Working voltageDC 12V
    Power consumption≤35W
    Enclosure
    Materialaluminium alloy bezel+High strength cold rolled steel back case
    ColorBlack, white, Silver , color can be customized
    VESA mounting100×100mm
    IP gradeFront panel IP65 waterproof
    Operating Environment
    Temperature Rangeoperating: -10 to 60°C, storage :-20 to 80°C
    Relative humidityoperating: 10% to 80% , storage :5% to 90%
    Packing Details
    Net weight3kg
    Gross weight4kg
    Product Dimension31×21.85×3.85cm
    Packing size40×33×16cm
    AccessoriesPower adapter, USB touch cable,HDMI cable, open frame kits
    Other
    Mountingopen frame
    wall mounting brackets (optional)
    desk stand holder (optional)
    Warranty1 year warranty
    CertificatesCE, FCC, RoHS


    Pictures

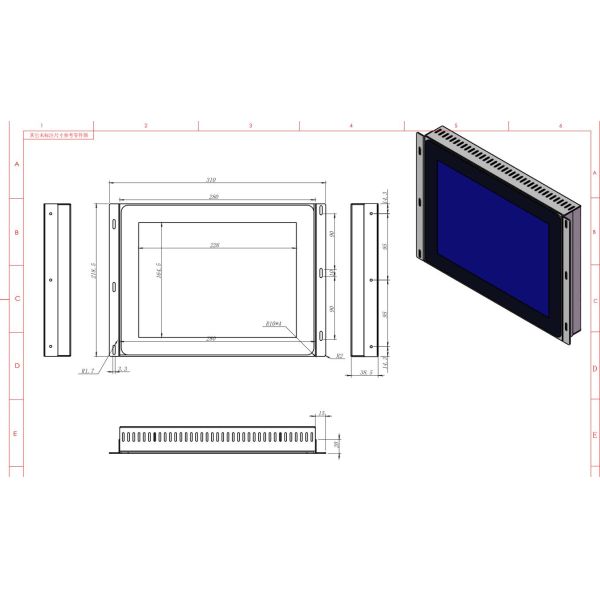

    Drawing
