    12" Optical Bonding 1024x768 Industrial Lcd Panel CANBUS Interface

    Ask Lasest Price
    Brand Name : Sihovision
    Model Number : SC121
    Certification : CE, FCC, RoHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram, Paypal
    Supply Ability :
    Delivery Time :
    • Product Details
    • Company Profile

    12" Optical Bonding 1024x768 Industrial Lcd Panel CANBUS Interface

    With GPIO&CANBUS Interface 12 Inch Optical Bonding Touch LCD Vehicle Panel PC


    Feature


    1. Fully enclosed design, the whole PC is dustproof.
    2. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof.
    3. Aluminum alloy shell, good mechanical properties, excellent heat dissipation.
    4. Industrial LCD panel, wide viewing angle, high nits, true color.
    5. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof. Adopt optical bonding technology.
    6. High performance motherboard, 7x24 continuous operation.
    7. 9V-36V wide voltage, 3 Pin Phoenix terminal, Shock - proof.
    8. Customized interface for vehicle use: GPIO + CANBUS.


    Specification

    Model:SC121
    PC
    CPUIntel® Celeron J1900, quad core, 2.0GHz, fanless
    ChipsetIntel ValleyView SSA-CUnit
    Memory4G DDR3
    Hard Drive Capacity32G SSD
    Hard Drive OptionalSSD: 64G ,28GB, 256GB
    HDD: 500GB, 1TB
    GraphicsCPU Integrated graphics HD Graphics and support 1080p HD photo quality
    AudioRealtek ALC662, High Definition Audio (HD), Line in, Line out
    Network1×Realtek RTL 8111E Gigabit Ethernet controller
    Wireless NetworkWIFI + Bluetooth4.0

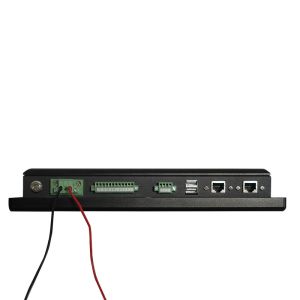

    I/O Interface2xUSB,2xLAN, 1xPhoenix terminal 9-36V
    1x8pins GPIO , 1xCANBUS
    Operation SystemUbuntu 16.04 LTS
    LCD panel
    Panel size12"
    Resolution1024*768
    Aspect ratio4:3
    Support Color16.7M colors
    Brightness (cd/m²)600
    Response time5ms
    Contrast ratio800:1
    View angle80°/80°/80°/80° (R/L/U/D)
    Touch panel
    Touchscreen TypeProject Capacitive Touch (10 points)
    Touch InterfaceUSB (RS232 optional)
    Touch response time2ms
    Luminousness90%
    Surface Hardness7H
    Working life>50 million times
    Touch options(5 wire resistive touch, IR touch optional)
    Power Supply
    External Power SupplyAC 100-240V
    Working voltageDC 12V
    Power consumption≤24W
    Enclosure
    MaterialAluminum Alloy
    ColorSilver, Black, white, color can be customized
    VESA mounting75×75mm/100×100mm
    IP gradeFront panel IP65 waterproof
    Operating Environment
    Temperature RangeOperating: -20 to 70°C, storage: -30 to 80°C
    Relative humidity5%~95% @ 40° C, non-condensing
    Vibration5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    Packing Details
    Net weight4kg
    Gross weight5kg
    Product Dimension30x24x5cm
    Packing size43x38x18cm
    AccessoriesPower cables, embedded screws, user manual, warranty card
    Other
    Mounting (options)Wall mounting brackets (optional)
    Desk stand holder (optional)
    Warranty1 year warranty
    CertificateCE, FCC, RoHS

    Drawing


    Application


    Shopping Mall


    Super Market


    Smart home


    Metro station


    Compang


    Hospital


    Airport


    Restaurant


    Automobile 4S stores


    Automatic pay station machine


    Packaging testing equipment


    Parking lot self-service payment machine
