    Sunlight Readable Waterproof HDMI Monitor VGA Touch Screen 17" IP67 For Navigation

    Ask Lasest Price
    Brand Name : SHINHO
    Model Number : SL17W
    Certification : CE, FCC, RoHS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union,Paypal, MoneyGram
    Supply Ability :
    Delivery Time :
    • Product Details
    • Company Profile

    Sunlight Readable Waterproof HDMI Monitor VGA Touch Screen 17" IP67 For Navigation

    17" Sunlight Readable HDMI VGA Touch Screen Monitor Full IP67 Waterproof For Navigation


    Feature

    • 17" industrial grade LCD panel

    • Resolution 1280*1024

    • 5 wire resistive touch screen

    • 1000cd/m2 sunlight readable

    • Screw-on Water-tight IO Cables Included

    • Full IP67 waterproof rated


    Specifications

    Model: SL17W

    LCD panel

    Panel size

    17"

    Resolution

    1280*1024

    Aspect ratio

    4:3

    Support Color

    16.7M colors

    Brightness (cd/m²)

    1000 cd/m2, sunlight readable

    Contrast ratio

    1000:1

    View angle

    80°/80°/80°/80° (R/L/U/D)

    Touch panel

    Touchscreen Type

    5 wire resistive touch

    Touch Interface

    USB (RS232 optional)

    Touch response time

    <8ms

    Luminousness

    75-85%

    Surface Hardness

    3H

    Working Life

    >35 million times

    Touch options

    ( PCAP touch optional)

    Singal Ports

    VGA

    1xVGA

    HDMI

    optional

    DVI

    optional

    Audio in/out

    optional

    OSD

    OSD control

    Brightness, contrast ratio, auto adjustment, H/V position, language select etc.

    Support languages

    English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.

    Support OS

    Windows XP, Windwows /7/8/10, Linux, Mac OS X, Android, ect.

    Power Supply

    External Power Supply

    AC 100-240V

    Working voltage

    DC 12V

    Power consumption

    25 W

    Enclosure

    Material

    aluminium alloy front bezel + High strength cold rolled steel back case

    Color

    Black, white, Silver, color can be customized

    VESA mounting

    75x75mm / 100x100 mm

    IP-grade

    Full IP67 waterproof

    Operating Environment

    Temperature Range

    operating: -10 to 60°C, storage: -20 to 80°C

    Relative humidity

    operating: 10% to 90%, storage: 5% to 90%

    Packing Details

    Net weight

    6kg

    Gross weight

    7kg

    Product Dimension

    42x34x4.9 cm

    Packing size

    53x46x19 cm

    Accessories

    Power adapter, VGA/USB cable

    Other

    Mounting (options)

    1) wall brackets for wall-mounting, VESA 100x100 mm

    2) stable metal holder to support the monitor

    Warranty

    1 year warranty


    Application

    • Food processing system

    • Sailing boat

    • Marine navigation

    • Process control systems

    • Truck

    • Waste Water Management

    • Bicycle

    • Underwater system

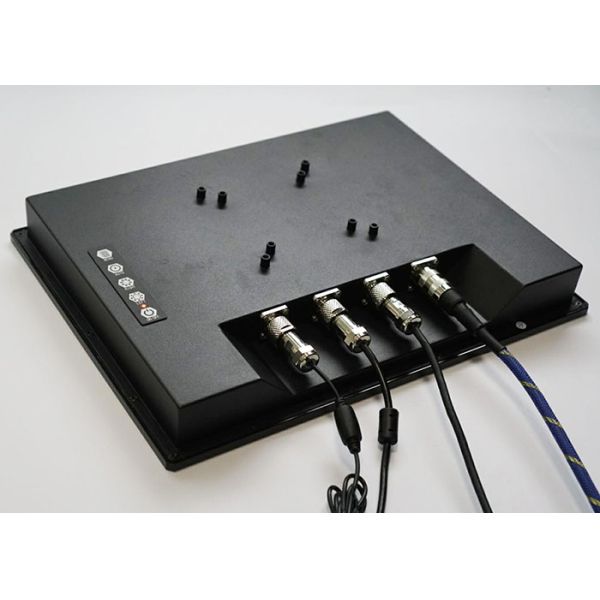

    More detailed pictures


    Drawing
