    350 Nits Brightness Industrial Touch Screen Panel 17'' For Reverse Vending Machine

    Ask Lasest Price
    Brand Name : Shinho
    Model Number : SC17
    Certification : CE , FCC , RoHS
    Price : Negotiable
    Payment Terms : T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
    Supply Ability :
    Delivery Time :
    • Product Details
    • Company Profile

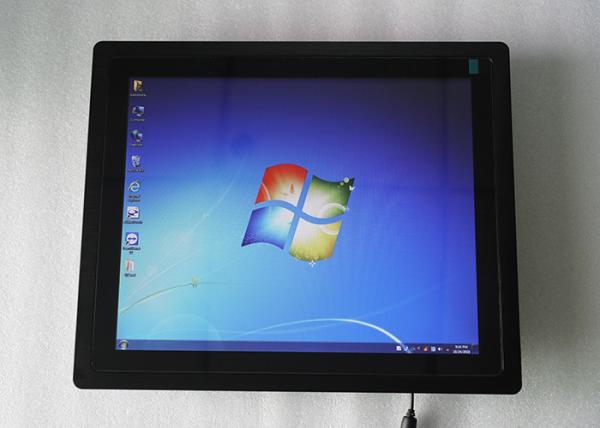

    350 Nits Brightness Industrial Touch Screen Panel 17'' For Reverse Vending Machine

    17 Inch Touch Screen Industrial Panel PC For Reverse Vending Machine


    Features

    • Front bezel 3mm thickness, ideal for panel mount.

    • Fully enclosed design, dustproof

    • Flat panel, front panel IP65 waterproof protection

    • Aluminum alloy enclosure, good performance of heat dissipation.

    • 4 COM optional, RS232/RS422/RS485 optional.


    Specifications

    Model:SC17

    PC

    CPU

    Intel® Celeron J1900, quad core, 2.0GHz, fanless

    Chipset

    Intel ValleyView SSA-CUnit

    Memory

    2GB DDR3 (4GB, 8GB optional)

    Hard Drive Capacity

    32GB SSD

    Hard Drive Optional

    SSD: 64G, 128GB, 256GB

    HDD: 500GB, 1TB

    Graphics

    CPU Integrated graphics HD Graphics and support 1080p HD photo quality

    Audio

    Realtek ALC662, High Definition Audio (HD), Line in, Line out

    Network

    1×Realtek RTL 8111E Gigabit Ethernet controller

    Wireless Network

    WIFI

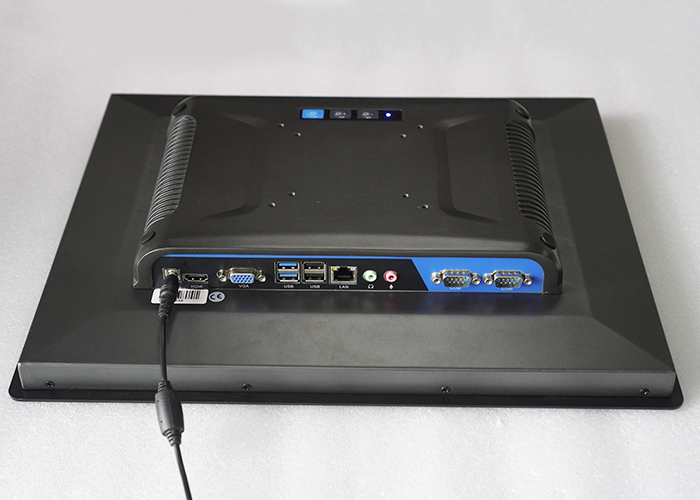

    I/O Interface

    3xUSB 2.0, 1xUSB 3.0, 2xCOM RS232

    1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC

    Operation System

    Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.

    LCD panel

    Panel size

    17"

    Resolution

    1280*1024

    Aspect ratio

    4:3

    Support Color

    16.7M colors

    Brightness (cd/m²)

    300+

    Response time

    5ms

    Contrast ratio

    1000:1

    View angle

    80°/80°/80°/80° (R/L/U/D)

    Touch panel

    Touchscreen Type

    Project Capacitive Touch (10 points)

    Touch Interface

    USB (RS232 optional)

    Touch response time

    2ms

    Luminousness

    90%

    Surface Hardness

    7H

    Working life

    >50 million times

    Touch options

    (5 wire resistive touch, IR touch optional)

    Power Supply

    External Power Supply

    AC 100-240V

    Working voltage

    DC 12V

    Power consumption

    ≤45W

    Enclosure

    Material

    Aluminum Alloy

    Color

    Black, Silver

    VESA mounting

    75×75mm/ 100×100mm

    IP grade

    Front bezel IP65 water resistant

    Operating Environment

    Temperature Range

    operating: -10 to 60°C, storage: -20 to 80°C

    Relative humidity

    5%~95% @ 40° C, non-condensing

    Vibration

    5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

    Packing Details

    Net weight

    7.7kg

    Gross weight

    8.2kg

    Product Dimension

    418.6x380x63mm

    Packing size

    530x470x180mm

    Accessories

    Power adapter, embedded screws, user manual, warranty card

    Other

    Mounting (options)

    embedded mounting screws

    wall mounting brackets (optional)

    desk stand holder (optional)

    Warranty

    1 year warranty


    Applications

    Self-service Library

    Reverse vending machine

    Hotel check-in kiosk

    Payment terminals

    Laser cutting machine

    Access control

    Agricultural automation

    Transaction kisoks

    Quality inspection system

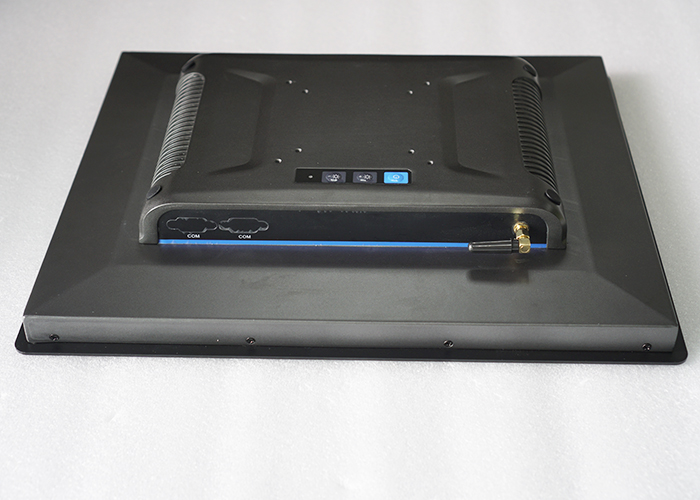

    More detailed pictures
