| Brand Name : | Sihovision |
| Model Number : | SL121W |
| Certification : | CE, FCC, RoHS |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union, MoneyGram, Paypal |
| Supply Ability : | |
| Delivery Time : | |

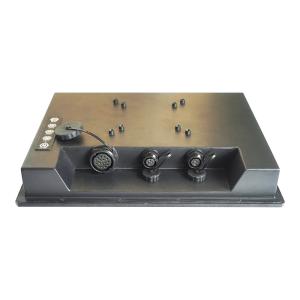

12 inch sunlight readable monitor full IP67 waterproof Industrial
resistive touch screen monitors
Features
1. Robust and durable all-metal enclosure, sealing design, full
IP67 waterproof.
2. Industrial LCD panel, high brightness 1000 nits,sunlight
readable.
3. Adopt high precision industrial 5 wire resistive touch screen.
4. High performance mainboard, 7x24 continuous operation.
Specification
| Model:SL121W | |
| LCD panel | |
| Panel size | 12.1" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits,sunlight readable |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 5 wire resistive touch |
| Touch Interface | USB (RS232 optional) |
| Touch response time | <5ms |
| Luminousness | 85% |
| Surface Hardness | 3H |
| Working Life | >35 million times |
| Touch options | ( PCAP touch optional) |
| Singal Ports | |
| VGA | 1×HDMI |
| VGA | optional |
| DVI | optional |
| AV | optional |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | 12 V |
| Power consumption | 25 W |
| Enclosure | |
| Material | aluminium alloy front bezel +High strength cold rolled steel back case |
| Color | Black, white, Silver , color can be customized |
| VESA mounting | 75×75/100×100 mm |
| IP-grade | IP67 |
| Operating Environment | |
| Temperature Range | operating: -10°C to 60°C, storage :-20°C to 70°C |
| Relative humidity | operating: 10% to 90% , storage :5% to 90% |
| Packing Details | |
| Net weight | 3kg |
| Gross weight | 5kg |
| Product Dimension | 32×25×4.78cm |
| Packing size | 50×41×18cm |
| Accessories | Power adapter, HDMI/USB cable |
| Other | |
| Mounting (options) | 1) provide wall brackets for wall-mounting, VESA 75×75 mm |
| 2) provide stable metal holder to support the monitor | |
| Warranty | 1 year warranty |
Drawing
Package

Certifications

OEM & ODM

About Shinho Electronic
Application

Smart City
Intelligent Education
Public Transportation
Commercial Terminals
Industrial automation area
Product Stamping and Packaging
|
