    High Sensitive Touch Screen Computer Monitor For Express Delivery Locker

    Ask Lasest Price
    Brand Name : Shinho
    Model Number : SL08
    Certification : CE, FCC, RoHS
    Price : Negotiation
    Payment Terms : T/T,Paypal,L/C, D/A, D/P, Western Union, MoneyGram,
    Supply Ability :
    Delivery Time : Shipped in 7 working days after payment received
    • Product Details
    • Company Profile

    High Sensitive Touch Screen Computer Monitor For Express Delivery Locker

    8 Inch Metal Case Capacitive Touch Open Frame LCD Monitor For Kiosk


    Features


    1. Panel size: 8 inch , 800*600, suggest 1024*768 high resolution.


    2. Robust and durable full metal case, shockproof, excellent heat dissipation.


    3. 10 point pcap touchscreen.high sensitive and fast-response.


    4. High performance mainboard, 7x24 continuous operation.


    5. VGA+DVI interface, HDMI also can be produced.


    8'' Open Frame LCD Monitor Applications


    raspberry pi


    Data Acquisition


    Advertising


    Signage Systems


    sports lotteries


    Customer Feedback Kiosk


    Express delivery locker


    Factory Automation


    Customization Service


    1. Resistive touch,infrared touch


    2. 400 nits for indoor use,1000 nits for semi-outdoor/outdoor use.


    3. Auto dimming.


    4. 24V power with Phoenix terminal.


    5. 12-24V wide voltage.


    6. VGA+HDMI+DVI / AV/ BNC


    7. Full IP65 waterproof monitor.


    8.Show your logo when turn on the monitor or print the logo on the bezel of monitor.


    9.COM RS232 for touch.


    10. Material: High strength cold rolled steel, stainless steel, Aluminium alloy.



    Specification


    Model:SL08
    LCD panel
    Panel size8"
    Resolution800*600 (1024*768 optional)
    Aspect ratio4:3
    Support Color16.7M colors
    Brightness (cd/m²)400+
    Contrast ratio1000:1
    View angle80°/80°/80°/80° (R/L/U/D)
    Touch panel
    Touchscreen TypeProject Capacitive Touch (10 points )
    Surface Hardness7H
    Luminousness90%
    Touch InterfaceUSB (RS232 optional)
    Touch response time2ms
    Working Life>50 million times
    Touch options(4 or 5 wires restive touch, IR touch optional)
    Signal Ports
    VGA1×VGA
    DVI1×DVI
    HDMIoptional
    Audio in/outoptional
    OSD
    OSD controlBrightness, contrast ratio, auto adjustment, H/V position, language select etc.
    Support languagesEnglish, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
    Support OSWindows XP , Windows /7/8/10 , Linux, Mac OS X, Android ect.
    Power Supply
    External Power SupplyAC 100 - 240V , 50-60Hz
    Working voltageDC 12V
    Power consumption≤35W
    Enclosure
    MaterialHigh strength cold rolled steel
    ColorBlack, white, Silver , color can be customized
    VESA mounting75×75mm/100×100mm
    Operating Environment
    Temperature Rangeoperating: -10 to 60°C, storage :-20 to 80°C
    Relative humidityoperating: 10% to 80% , storage :5% to 90%
    Packing Details
    Net weight2kg
    Gross weight3kg
    Product Dimension20.4*16.13×4.2cm
    Packing size33*40*19cm
    AccessoriesPower adapter, VGA cable, USB touch cable,embedded screws,user manual,
    warranty card
    Other
    Mountingopen frame
    embedded mounting screws
    wall mounting brackets (optional)
    desk stand holder (optional)
    Warranty1 year warranty

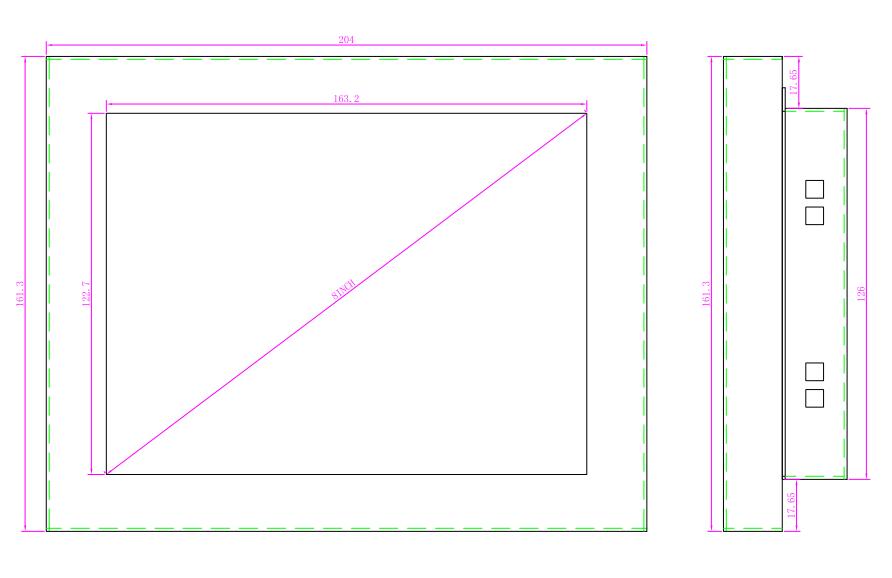

    Drawing
