    Aluminum alloy Waterproof Touch Monitor Industrial Resistive Touchscreen For Boat Console

    Ask Lasest Price
    Brand Name : SHINHO
    Model Number : SL133W
    Certification : CE, FCC, RoHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram, Paypal
    Supply Ability :
    Delivery Time :
    • Product Details
    • Company Profile

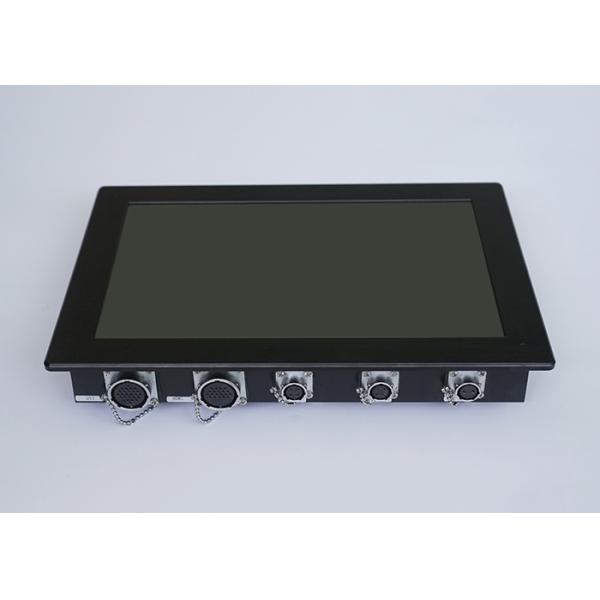

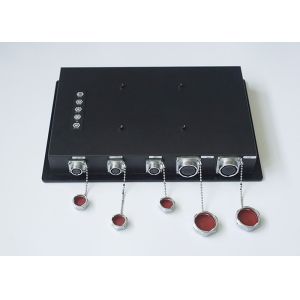

    Aluminum alloy Waterproof Touch Monitor Industrial Resistive Touchscreen For Boat Console


    13.3 Inch Waterproof Full IP67 Industrial Resistive Touchscreen Monitor For Boat Console


    Features

    1. Robust and durable, all-metal enclosure, sealing design, full IP67 waterproof, Sealed I/O with cable set included.
    2. 13.3'' Industrial LCD panel, 400 nits.
    3. Adopt EETI touch solution. high precision industrial 5 wire resistive touch screen. stable, durable, anti-interference.
    4. Wide Temperature Range: operating: -20 to 70°C, storage: -30 to 80°C.
    5. With a dimmer to adjust the brightness.
    5. High performance mainboard, 7x24 continuous operation.

    Specification

    Model: SL133W
    LCD panel
    Panel size13.3"
    Resolution1280*800
    Aspect ratio16:10
    Support Color16.7M colors
    Brightness (cd/m²)400 nits
    Brightness controlDimmer
    Contrast ratio1000:1
    View angle80°/80°/80°/80° (R/L/U/D)
    Touch panel
    Touchscreen Type5 wire resistive touch
    Touch InterfaceUSB (RS232 optional)
    Touch response time<8ms
    Luminousness75-85%
    Surface Hardness3H
    Working Life>35 million times
    Touch options( PCAP touch optional)
    Singal Ports
    DVI1xDVI
    HDMI1xHDMI
    VGAOptional
    Audio in/outOptional
    OSD
    OSD controlBrightness, contrast ratio, auto adjustment, H/V position, language select etc.
    Support languagesEnglish, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
    Support OSWindows XP, Windwows /7/8/10, Linux, Mac OS X, Android, ect.
    Power Supply
    External Power SupplyAC 100-240V
    Working voltageDC 12V
    Power consumption25 W
    Enclosure
    MaterialAluminium alloy front bezel + High strength cold rolled steel back case
    ColorBlack, white, Silver, color can be customized
    VESA mounting100x100 mm
    IP-gradeFull IP67 waterproof
    Operating Environment
    Temperature RangeOperating: -20 to 70°C, storage: -30 to 80°C
    Relative humidityOperating: 10% to 90%, storage: 5% to 90%
    Packing Details
    Net weight4kg
    Gross weight5.5kg
    Product Dimension34.9×24.1×4.77cm
    Packing size50x47x17 cm

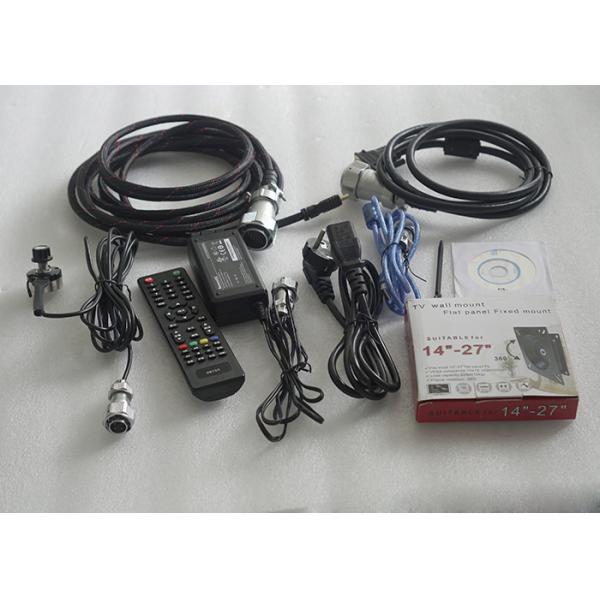

    AccessoriesPower adapter, Waterproof Power cord, Waterproof HDMI/DVI/USB cable, Dimmer cable, Wall mount
    Other
    Mounting (options)1) Wall brackets for wall-mounting, VESA 100×100 mm
    2) Stable metal holder to support the monitor
    Warranty1 year warranty

    Application

    Metro Station

    Boat Console

    Firefighter car

    Energy vehicle

    Marinetime use

    Soil testing machine

    Food Manufacturing
