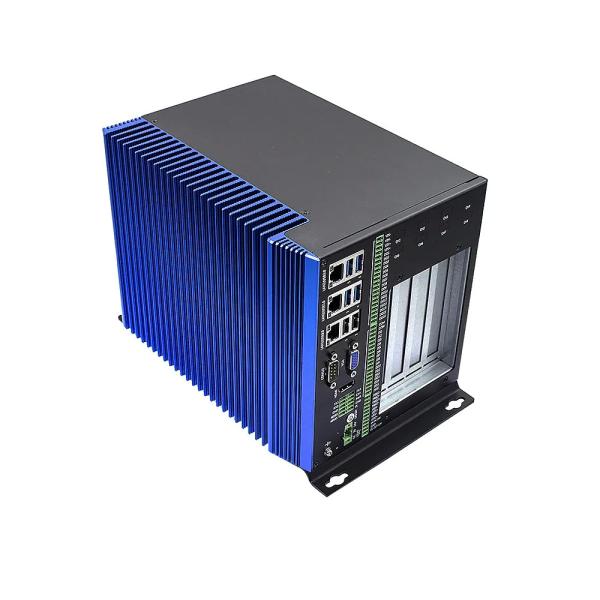

    Fanless Industrial Mini PC with Intel Core i7-6700 CPU 3 LAN Ports 1 PCIe X16 Slot

    Ask Lasest Price
    Brand Name : Sihovision
    Model Number : SM709-5-IO
    Certification : CE,FCC,RoHS
    Payment Terms : T/T , Paypl , L/C , D/A , D/P , Western Union , MoneyGram
    Supply Ability : 2000pcs/week
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Fanless Industrial Mini PC with Intel Core i7-6700 CPU 3 LAN Ports 1 PCIe X16 Slot

    Fanless Industrial Mini PC with Intel Core i7-6700 CPU 3 LAN Ports 1 PCIe X16 Slot


    Features:
    Intel 6gen, 8gen Independent CPU
    PCI PCIE
    IO board for Visual inspection application
    24V power supply, Fanless
    Industrial grade working temperature -20℃-60℃

    Specification

    Model: SM709-5-IO
    PC
    CPUIntel® Core i3-6100, 2 Cores, 4 Threads, Turbo 3.7GHz, Fanless
    CPU OptionalIntel® Core i5-6500, 4 Cores, 4 Threads, Turbo 3.6GHz, Fanless
    CPU OptionalIntel® Core i7-6700, 4 Cores, 8 Threads, Turbo 4.0GHz, Fanless
    CPU OptionalIntel® Core i7-8700, 6 Cores, 12 Threads, Turbo 4.6GHz, Fanless
    GraphicsINTEL HD Graphics 630/650
    Memory1* DDR4-2133-3200MHz SO-DIMM Max 32G
    Storage2*SATA interface (2*2.5-inch SATA3.0 can be customized before leaving the factory), support 2.5-inch hard disk
    (128GB/256GB/500GB/1TB optional), and 3.5-inch hard disk can be customized
    Display1* HDMI Max4096 x 2160@24 Hz, 1* VGA Max 4096 x 2160@24 Hz
    Network3* LAN Intel I225V
    I/O1*Earthing rod, 1* DC 24V IN, 1* ON/OFF Button, 1* RS485, 2* RS232, 1* Power LED, 1* Remote control ON/OFF, 1* HDMI, 1* VGA, 1* COM RS232, 2* USB2.0, 4* USB3.0, 3* LAN
    1* PCIe X4 Slot(PCIe X2 Signal)
    2* PCI Slot
    1* PCIe X16 Slot( PCIe X16 Signal)
    3* LAN: Intel I225 chip, speed: 10/100/1000Mbps
    Expansion Slot1*miniPCIe slot, supports mSATA (capacity 64/128/256/480/512GB...optional)
    1* SW2: Clock reset, 1*4PIN 2.54mm spacing pin header
    2* PCI slot
    1* PCIe X4 slot(PCIEX2 signal)
    1* PCIe X16 slot (PCIEX16 signal)
    BIOSAMI BIOS
    WDTSupport 256 levels (0~255), programmable
    Operation SystemWindows® 10, LINUX
    IO Board
    GPIO16*DI, NPN/PNP mode input DC 10V-30V
    16*DO, output voltage DC 10-30V, rated current of each channel is 500mA (depending on the power supply voltage)
    TRIG2*Light source trigger
    DC IN 24VLight source external power supply interface
    CHThe default is 2*light source interface, which can be changed to 8*light source interface. The rated current of a single light source is 1A.
    DC OUT 12V1*12V output, maximum current support 1A
    Power Supply
    External Power SupplyAC 100 - 240V
    Working voltageDC 24V INPUT
    Enclosure
    MaterialAluminum Alloy
    ColorBlue and Black
    Operating Environment
    Temperature RangeOperating: -20 to 60°C, Storage: -30 to 70°C, surface air flow
    Relative humidity10%~95% , non-condensing
    Packing Details
    Net weight5.1 kg
    Gross weight7 kg
    Product Dimension194.66 x 172.5 x 278.74 mm
    Packing size40*40*35cm
    AccessoriesPower adapter, Power plug, Screws, Installation bar
    Other
    Mounting (options)Horizontal installation/wall-mounted installation/DIN rails installation (the factory default is horizontal installation, if a wall-mounted bracket or a DIN rails bracket is required, it must be confirmed before shipping)
    Warranty2 years warranty
